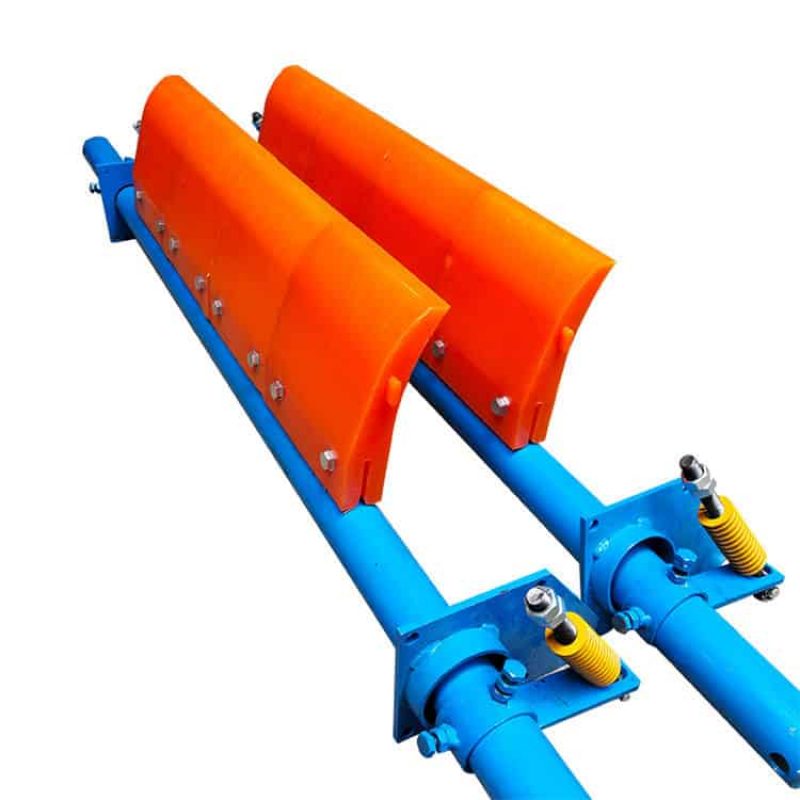

PRIMARY SCRAPERS

Efficient Material Removal – Right at the Head Pulley

ABQ’s Primary Scrapers are designed to remove the bulk of material at the discharge point of your conveyor system. Mounted directly onto the front of the head pulley, these scrapers feature a quick-release poly-composite blade for reduced maintenance and fast servicing.

Request a Quote

Key Features Feature

  • Poly-composite or tungsten carbide blades
  • Self-sharpening blade geometry
  • Concealed torque-adjustable tensioner
  • Side-mounted pedestal brackets for easy removal

Applications

  • Mining operations
  • Quarrying
  • Cement plants
  • Power generation
  • Steel mills
  • Ports and terminals

Benefits

  • Reduces material carryback and wear.
  • Minimizes downtime with fast, tool-free blade changes.
  • Protects your belts, reducing maintenance costs.

Features

✅ Quick-Release Blade System
✅ Safe on Mechanical Belt Joints
✅ Consistent Cutting Edge Wear Angle
✅ Torque-Measured Tensioning for Accuracy
✅ Protected Adjustment Mechanism
✅ Side-Mounted Brackets for Easy Removal

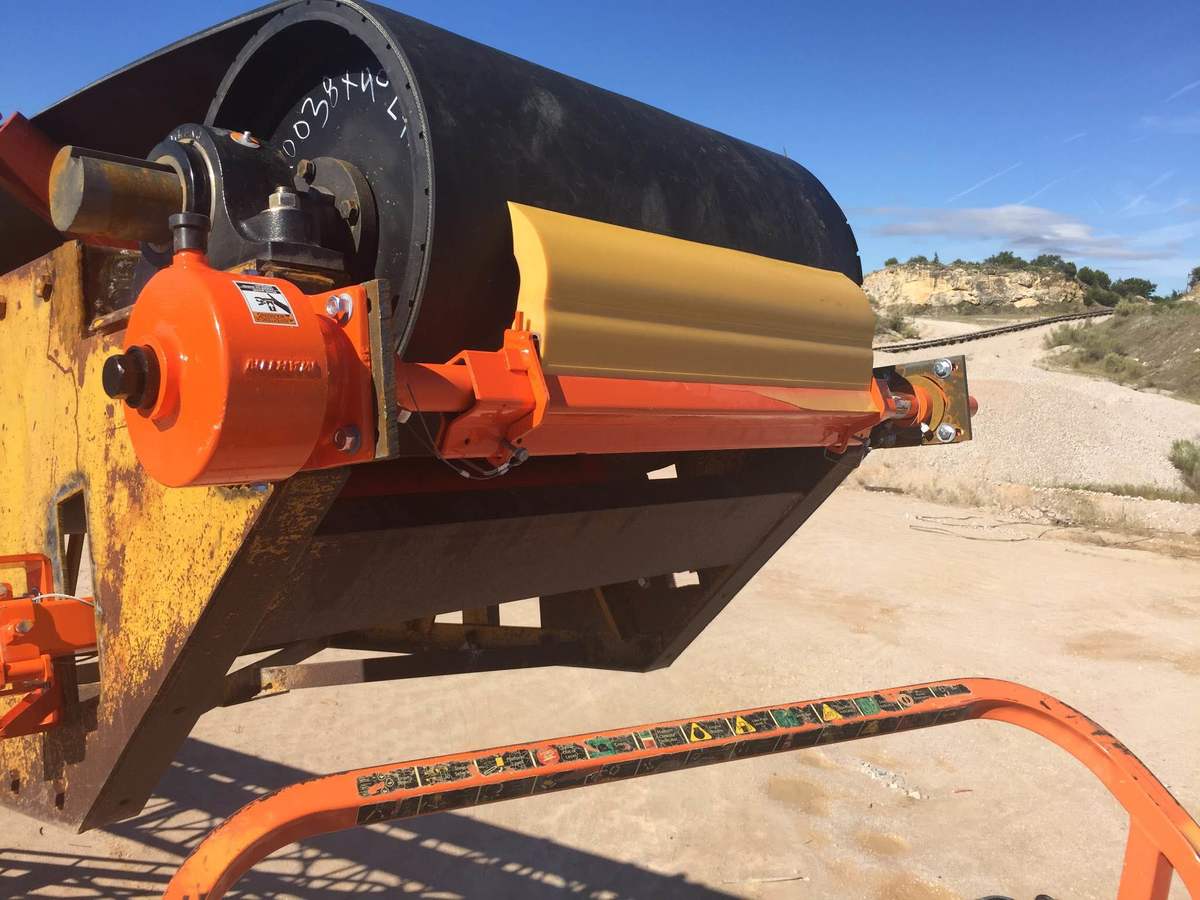

The object of a Primary Scrapers is to remove most of the residue material on the belt at the discharge points. This primary scrapers works on the front of the head pulley, and has a quick-release blade for low maintenance and reduces downtime.


 The poly-composite blade is used safely on mechanical joints on the conveyor belt. With the design of the blade the wear angle always maintains a sharp cutting edge. Various hardness of the blade is available on request. The adjusting mechanism is concealed to protect it against robust environment in which it works.


 The advantage of this type of adjustment is that the tension of the blade against the belt can now be measured using a torque wrench. The side pedestal brackets locking mechanism makes for easy removal from the conveyor belt in case of breakdown and pulley maintenance.

Belt Size

Primary Belt Scrapers
  • 600 Belt
  • 750 Belt
  • 900 Belt
  • 1050 Belt
  • 1200 Belt
  • 1350 Belt
  • 1500 Belt
  • 1800 Belt
  • 2200 Belt
Click Here For A Quote
We offer custom sizing

Technical Features and Specifications of Our Primary Belt Scrapers

  • Blade Material Options:
    • Poly-Composite: Ideal for general mining and dry conditions.
    • Tungsten Carbide: For ultra-abrasive environments such as iron ore or platinum.
  • Blade Wear Geometry: Maintains a consistent cutting edge angle to prolong blade life.
  • Tensioning System:
    • Concealed and dust-protected, adjustable using standard torque tools.
  • Mounting & Maintenance:
    • Pedestal brackets for easy removal during head pulley maintenance.
    • Side-mount design for safe and efficient servicing access.

Get in Touch with Us Today

ABQ Primary Scrapers are the front line in conveyor hygiene—rugged, easy to maintain, and tuned for the demands of South African industry. Engineered for high-throughput operations where reliability and belt protection are non-negotiable.
