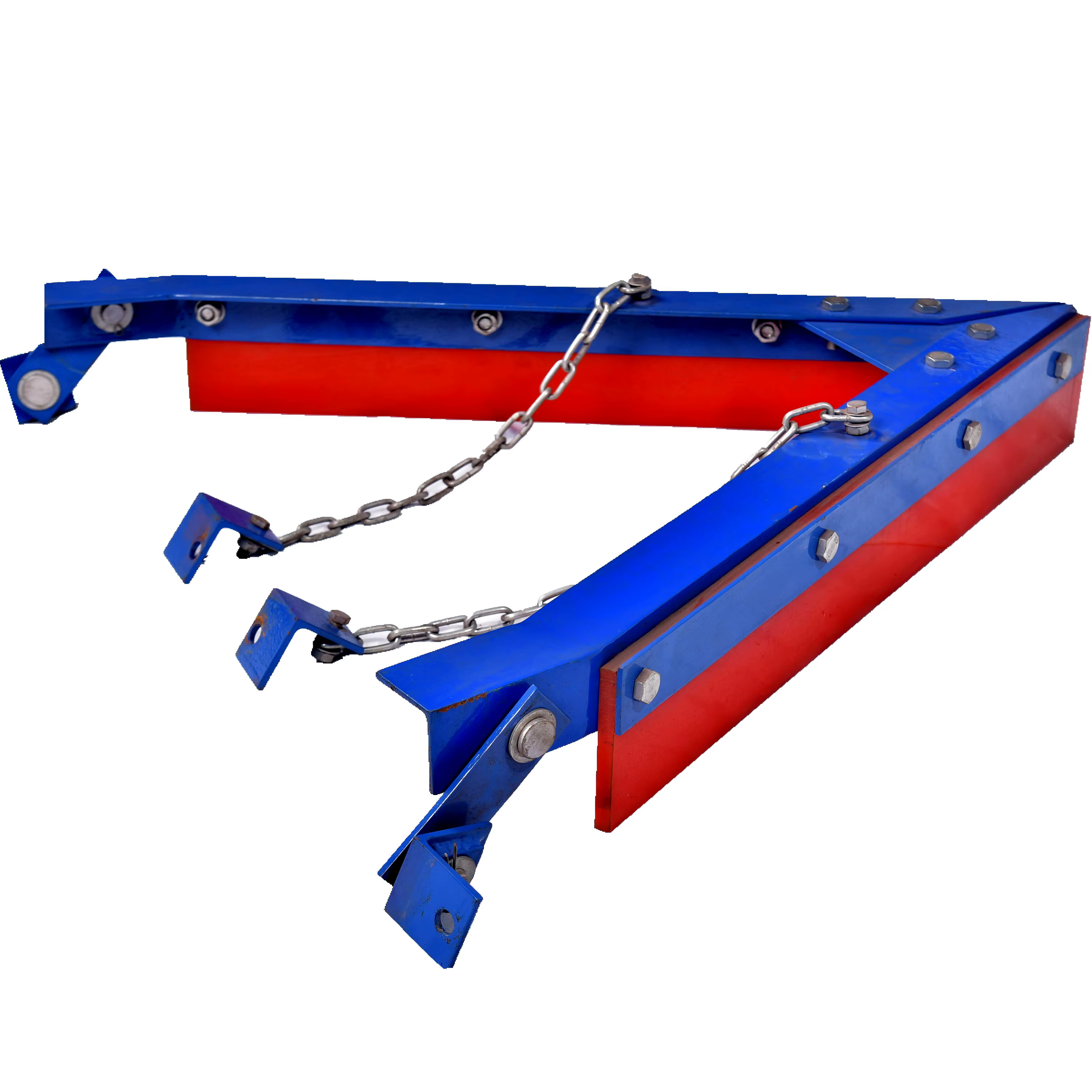

V Plough Belt Scrapers

The V-Plough Scraper by ABQ is fitted on the return belt near the tail pulley to prevent material from damaging the belt or pulley. Its V-shaped design automatically ploughs debris off both sides of the belt, while the self-adjusting swivel brackets allow the blade to adapt to belt movement without constant manual tensioning.

A built-in safety roller prevents digging or belt damage, and the unit is designed for fast, bolt-free installation.

Request a Quote

Key Features Feature

  • V-shaped design for bilateral material discharge
  • Self-adjusting swivel brackets and arms
  • Integrated safety roller prevents belt damage
  • No bolt holes required for installation
  • Simple mounting system
  • Automatic tension adjustmen

Applications

  • Mining (gold, coal, platinum)
  • Aggregates (limestone, granite)
  • Heavy industrial applications.
  • Cement plants

Benefits

  • Protects tail pulley from material damage
  • Prevents belt edge damage
  • Reduces cleanup requirements
  • Minimizes tracking problems
  • Extends component life

Features

✅ Dual-Sided Belt Cleaning
✅ Self-Adjusting Swivel Arm Design
✅ Built-In Safety Roller for Belt Protection
✅ No Bolt Holes Required for Installation

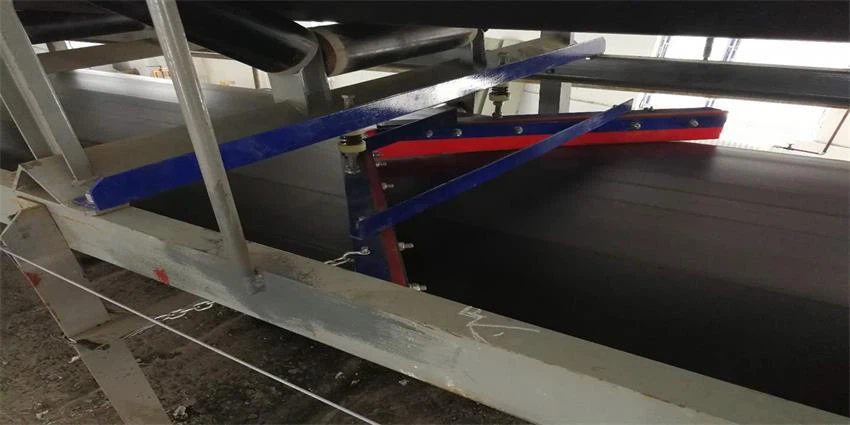

The V-Plough scraper is fitted on the return belt near the tail end and pulley, to clear material that could fall from the top belt, thus preventing damage to both the belt and the tail pulley.

The “V” shape ploughs the material off either side of the belt, and the swivel action of the fixing brackets and arms allows the scraper to SELF-ADJUST its self.

A safety roller is built in to the scraper to prevent the point of the scraper from digging into the conveyor belt. Installation of this scraper is very simple, in that no bolt holes are required.

Belt Size

V Plough Belt Scrapers
  • 600 Belt
  • 750 Belt
  • 900 Belt
  • 1050 Belt
  • 1200 Belt
  • 1350 Belt
  • 1500 Belt
  • 1800 Belt
  • 2200 Belt
Click Here For A Quote
We offer custom sizing

Technical Features and Specifications of Our V Plough Belt Scrapers

  • Scraper Types:
    • V-Plough – For reversible belt applications.
  • Blade Composition:
    • Impact-resistant polyurethane or rubber blades that are gentle on belts.
  • Floating Mount Assembly:
    • Allows for dynamic response to belt vibration, misalignment, or run-off.
  • Fastener & Damage Bypass:
    • Automatically lifts over belt splices and damage zones.
  • Quick-Access Design:
    • Hinged mount allows swift removal for maintenance.
  • Sizing:
    • Custom built to suit belt widths from 600mm to 2200mm.

Get in Touch with Us Today

ABQ V-Plough Scrapers are essential for preserving your tail pulley and return belt integrity. By removing damaging material before it causes harm, these scrapers extend equipment life and improve operational safety across mining and industrial sites.
